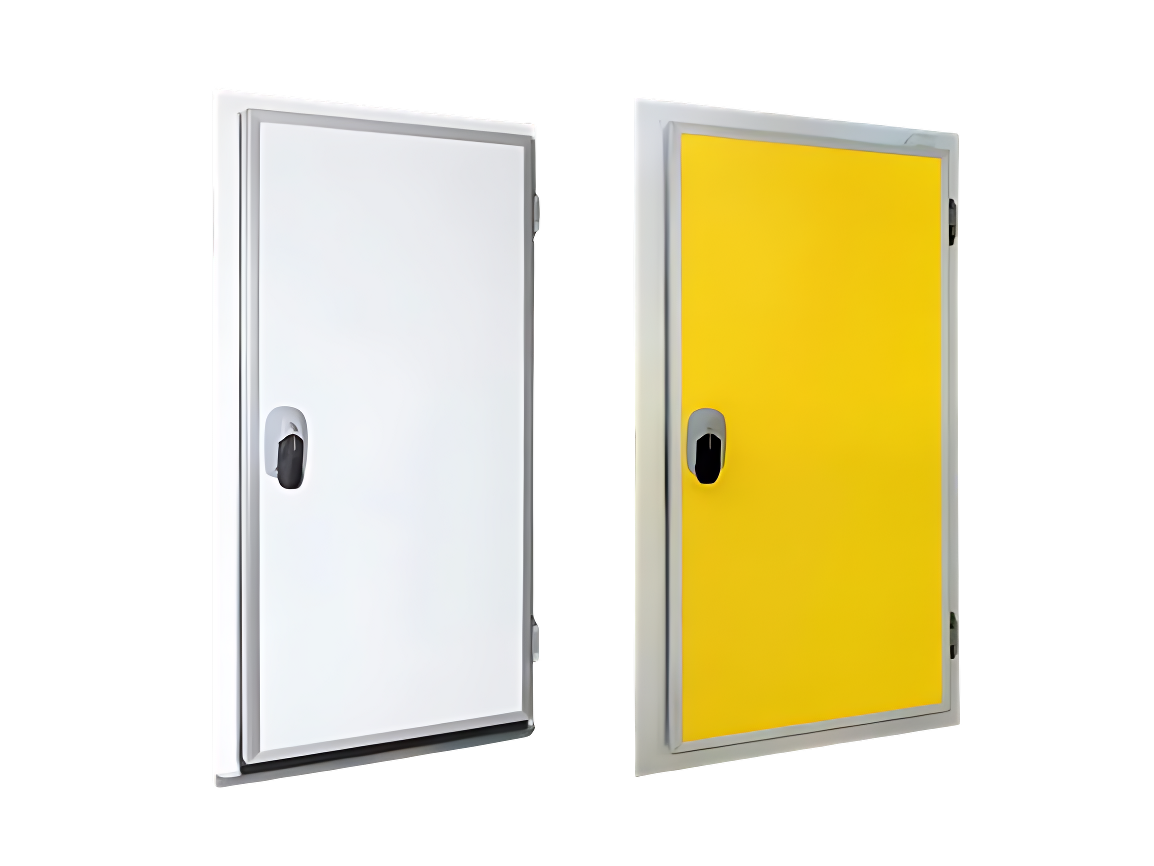

Industrial Hinged Cold Room Doors
The premier choice for heavy-duty cold storage and freezing applications, engineered for maximum climate retention and durability.
General Description
SITC SMART industrial hinged doors are the premier choice for heavy-duty cold storage and freezing applications. Engineered with advanced cam-action locking mechanisms, these doors facilitate rapid opening and closing cycles to preserve internal climate zones. Our standard production size is 90 x 190 cm, with full manufacturing flexibility for custom scales to match any project scope.
Built entirely without wood components, the door leaf is automatically injected with high-density polyurethane insulation between double protective metal sheets. Sealed with specialized commercial EPDM rubber gaskets, these doors eliminate thermal leaks and resist extreme mechanical wear.
Key Performance Features
Technical Specifications
| Standard Size | 90 x 190 cm (Custom sizes available) |
|---|---|
| Insulation Density | 40 (+/- 2) kg/m³ Polyurethane Core |
| Chiller Leaf Thickness | 68 mm |
| Freezer Leaf Thickness | 92 mm |
| Shock Freezer Thickness | 120 mm |
| Locking System | Premium lock with internal glow-in-the-dark handle |
| Hinge Mechanism | Adjustable, Lift-Up type industrial hinges |
| Anti-Freeze Heating | Diode-protected heating element |
| Fire Resistance Rating | C S3 D0 (TS-EN 13501-1) |
| Thermal Conductivity | lambda 0.022 W/mK |
Frame System Configurations
- Panel-Mounted: Custom integrated door frame built directly into wall panel modules for zero-error installation.
- PVC Frame Isothermal Series: Crafted out of high-insulation structural PVC profiles.
- Aluminum Frame Isothermal Series: Heavy-duty architectural anodized aluminum for physical impact resistance.
Premium Material Options
- PPGI: High-grade food-safe standard finish.
- PVC-Coated: Robust resistance to moisture and chemical scratches.
- Stainless Steel (CrNi): Best for processing rooms with aggressive sterilization regimens.
