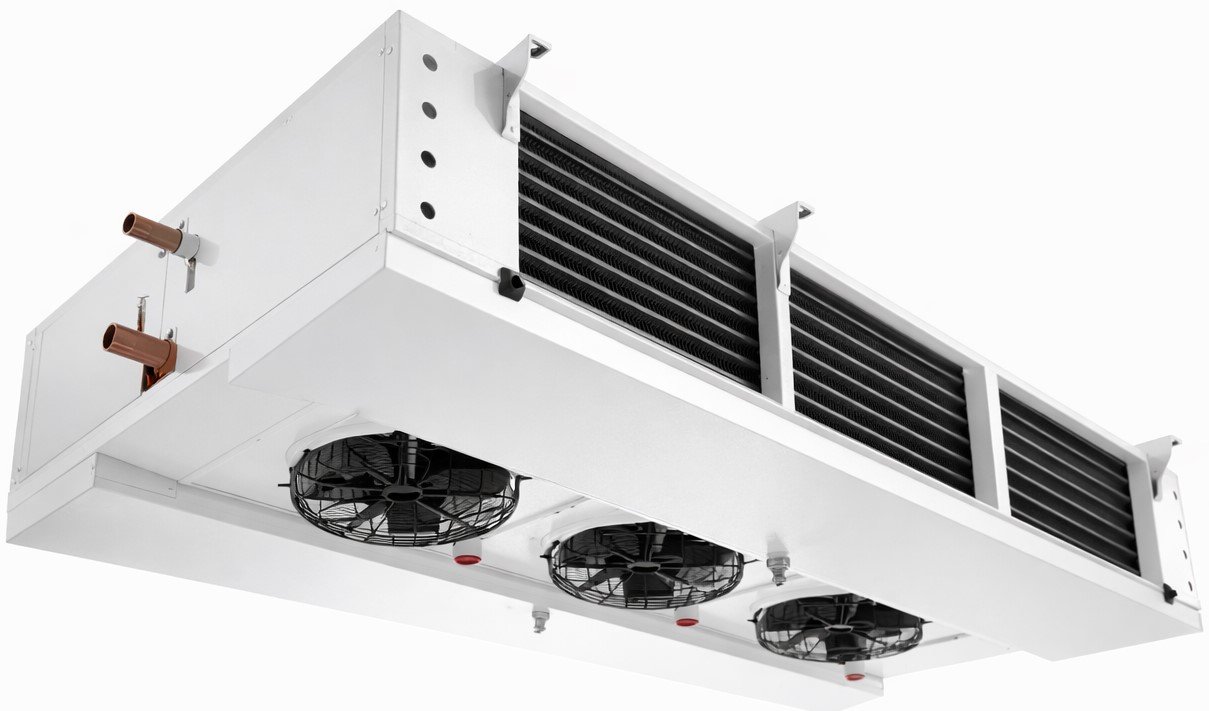

Ceiling Type Unit Cooler
Evaporator solutions designed for ceiling installation to optimize space utilization and provide balanced air circulation in cold room applications.
General Description
Ceiling type unit coolers are fan-assisted evaporator solutions designed for ceiling installation in cold rooms and storage areas. Their compact structure allows easy placement within the cooled volume, while airflow and fan positioning are arranged to ensure balanced air distribution throughout the space.
With fan selection suitable for low noise levels, they provide more suitable operating conditions, especially in applications close to working areas. They ensure uniform cooling while maintaining low noise levels for a comfortable operating environment.
Design & Engineering
Technical Specifications
| Cooling Capacity Range SC1 (0 / 10°C) | 1,561 – 36,307 kW |
|---|---|
| Cooling Capacity Range SC2 (-8 / 0°C) | 1,196 – 24,199 kW |
| Refrigerants | R404A / R407F / R448A / R449A |
| Fan System | High Capacity Axial Fan |
| Fin Material | Aluminum |
| Tube Material | Copper |
| Fin Spacing Options | 4 mm, 6 mm, 8 mm |
| Defrost Method | Electric |
Standard Equipment
- Axial Fan
- Electric Defrost Heater
- Drain Pan
- Electrostatic Powder Coated Closed Cabinet
Optional Equipment
- Expansion Valve
- Control Panel
- Epoxy Coating
- Stainless Steel Body
- Hot Gas Defrost
