High-Speed PVC Roll-Up Doors

The definitive engineering solution for industrial facilities requiring high-frequency access control, rapid cycling, and environmental isolation.

Call Us Now Email Us

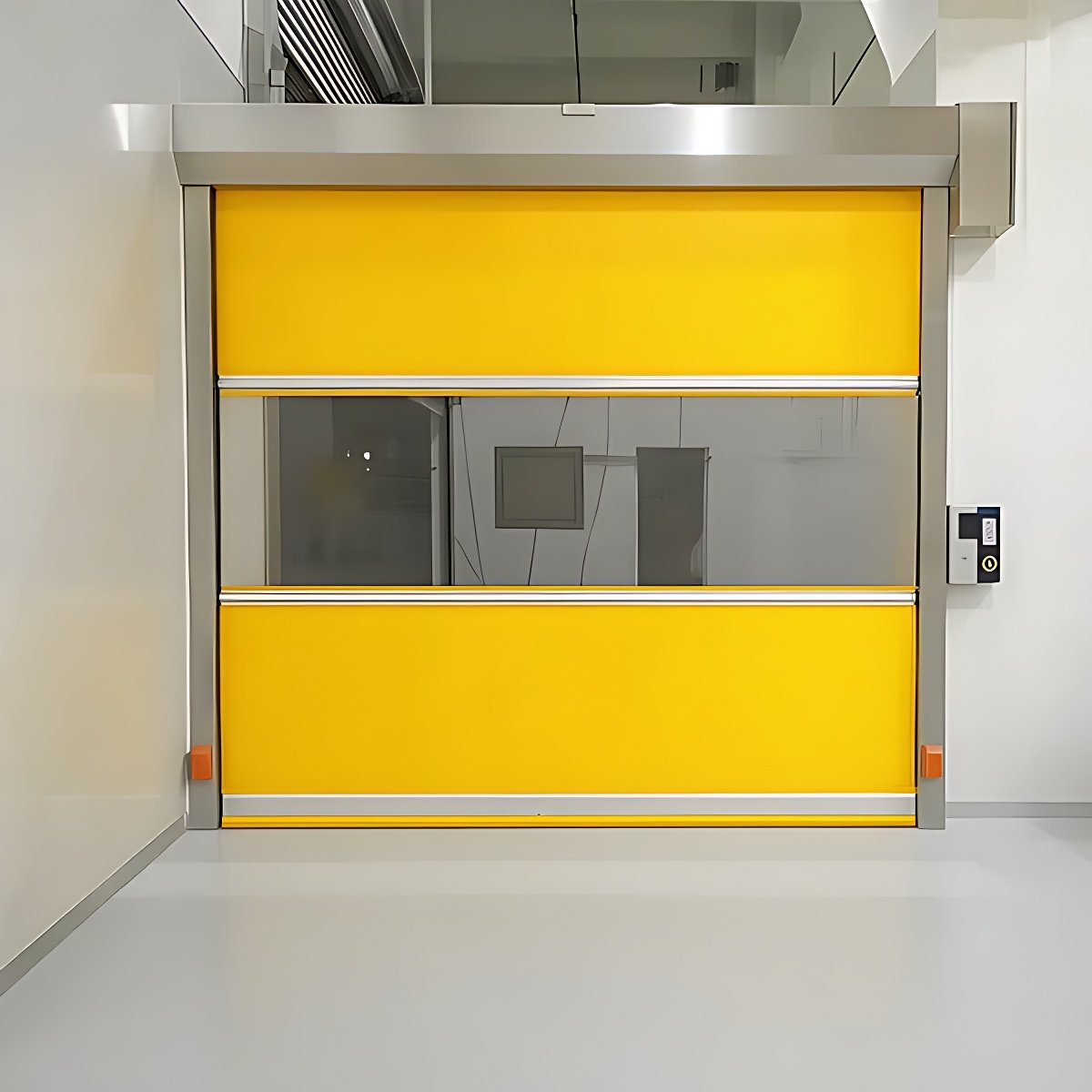

High-Speed PVC Roll-Up Doors

High-Frequency Environmental Barriers

SITC SMART High-Speed PVC Roll-Up Doors are the definitive engineering solution for industrial facilities, workshops, and commercial zones requiring high-frequency access control. Formulated to be ultra-fast, flexible, and completely dustproof and waterproof, these doors provide an exceptional environmental barrier.

By sealing structural openings dynamically, they effectively isolate external contaminants, pests, and air drafts to maintain interior cleanliness while ensuring a seamless, high-velocity logistics flow for personnel, hand carts, and heavy machinery.

Key Operational Benefits

⚡ Rapid Cycling: Optimizes warehouse efficiency and retains climate parameters.
🛡️ Low Maintenance: Tear-resistant PVC built for extreme industrial workloads.
📐 Space-Saving: Minimal side/head clearance for tight cells.
💼 Cost-Effective: Competitive pricing with high operational performance.

Technical Specifications

Max Dimensions6000mm x 6000mm
Operating SpeedOpens: 1.2 m/s | Closes: 0.6 m/s
Daily Duty CycleRated up to 1000 times / day
Curtain MaterialPremium PVC (1.2mm to 1.5mm)
Wind ResistanceUp to 28 m/s (Class 10 Storm)
Air Tightness95m³/hour at 30Pa
Motor Power0.75 KW to 2.2 KW

Advanced Automation Access

📡 Radar Sensors: Automated opening for logistics traffic.
🧲 Induction Loops: Metal detection for forklift safety.
🧠 Pedestrian Logic: Smart movement differentiation.
