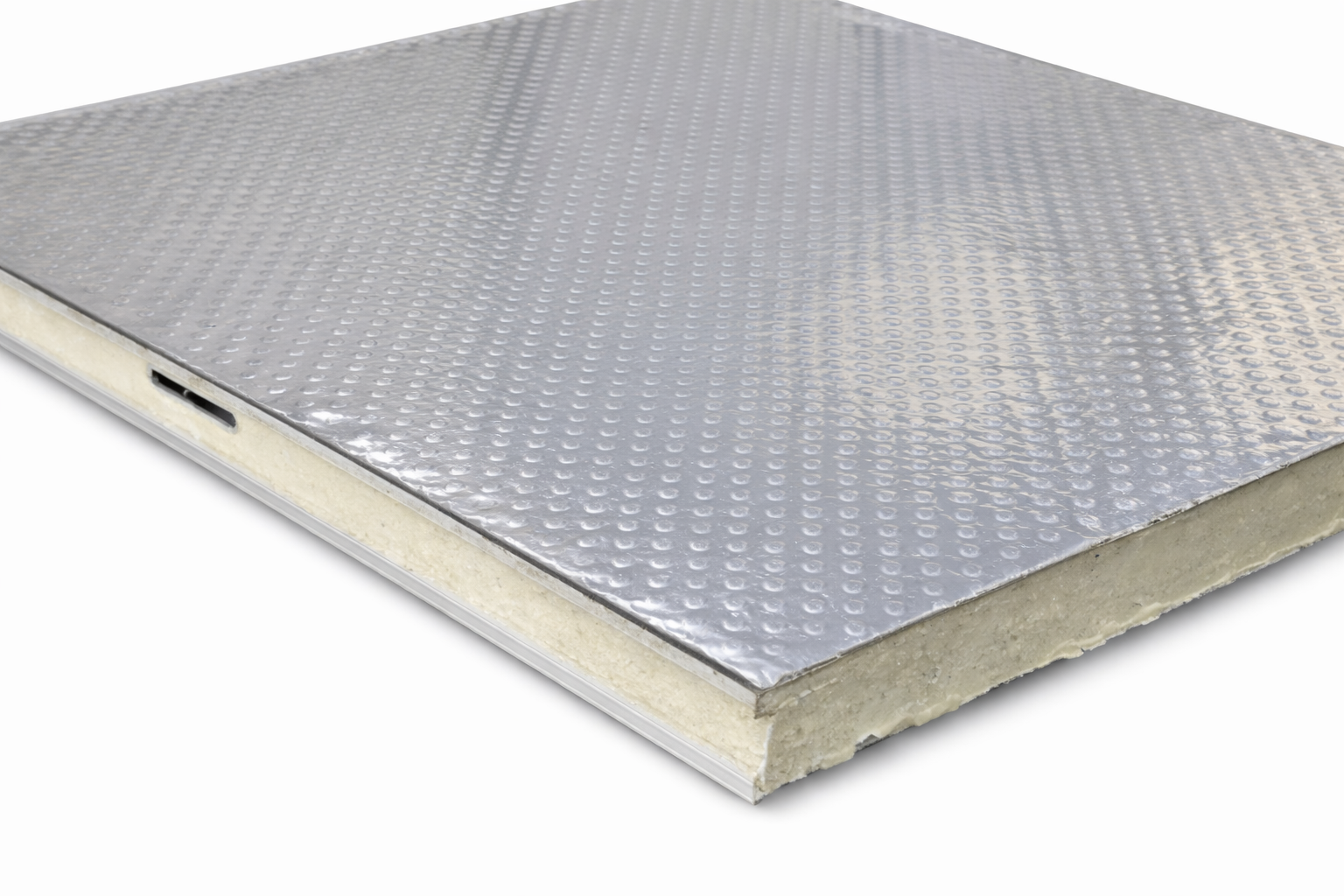

Cold Room Insulated Floor Panels
Engineered to endure heavy mechanical loads and high traffic, these panels provide elite thermal insulation to prevent sub-building frost damage.
High Compressive Strength Flooring Solutions
SITC SMART insulated floor panels are engineered to endure heavy mechanical loads, high traffic, and continuous stress while providing elite thermal insulation. This superior insulation performance prevents cold energy from penetrating the subfloor, effectively eliminating the critical risk of ground freezing, frost heaving, and structural building buckling.
Featuring our core integrated internal Cam-Lock technology, the mechanical joints lock floor sections tightly together. This robust seal prevents any panel shifting, separation, or structural sagging under rolling load stress, safeguarding the core insulation material against washing-water infiltration and condensation pooling.
Engineering & Compressive Performance
High Compressive Resistance
High-density injected foam exhibits exceptional strength, preventing floor deflection, indentation, or core collapse under long-term static pallet loads.
Structural Alignment
The fixed 111 cm width aligns perfectly with wall and ceiling panel profiles to achieve a precise, perfectly square structural interlocking grid.
Foundation Protection
Thickness specifications are meticulously matched to room temperature dynamics to actively protect sub-building foundations from frost damage.
Technical Specifications
| Door Action Profile | Flexible 180-Degree Double Acting Swing |
|---|---|
| Standard Leaf Thickness | 40 mm (Custom thickness optional) |
| Insulation Core Density | 40 (± 2) kg/m³ High-Density Polyurethane |
| Sheet Metal Gauge Options | 0.50 mm to 1.2 mm Structural Facings |
| Hinge Mechanism | Heavy-Duty Double-Acting Gravity Hinges |
| Special Hinge Features | Self-Closing Gravity Return / 90° Hold-Open |
| Wood Components | 0% Wood (Complete anti-rot engineering) |
Operational Workflow Floor Options
Option 1: Anti-Slip Flooring
The insulated panel core is overlaid with heavy-duty Marine Plywood and topped with an Anti-Slip Checkered Aluminum or Stainless Steel surface sheet. Perfect for commercial cold rooms, restaurants, and medium warehouses.
Option 2: Concrete Screed Overlay
Panels are faced with galvanized steel as an insulation base. Contractors install steel reinforcement grids and pour a heavy concrete slab (Epoxy/Hardener finish). Engineered for mega-logistics and heavy forklift traffic.
Traffic & Loading Suitability
Pedestrian Traffic
Anti-Slip Finish
Hand Trolleys
Anti-Slip Finish
Electric Pallet Jacks
Concrete Screed Setup
Heavy Forklifts
Concrete Screed Setup
